[ Getting started ]

Your first test

Test your MCP application manually, then turn your session into an automated end-to-end test in under 5 minutes.

1. 1

   Start MCP Studio

   Run `mcp-studio` in your terminal — it will open localhost:7777 in your browser automatically, or you can navigate there manually.

   $ mcp-studio

2. 2

   Connect your MCP application

   You need to prepare your mcp server url to connect your MCP application. For authentication, MCP Studio supports OAuth2.1, header-based authentication.




   By default, MCP Studio includes an Excalidraw profile at https://mcp.excalidraw.com/mcp

   mcp studio



3. 3

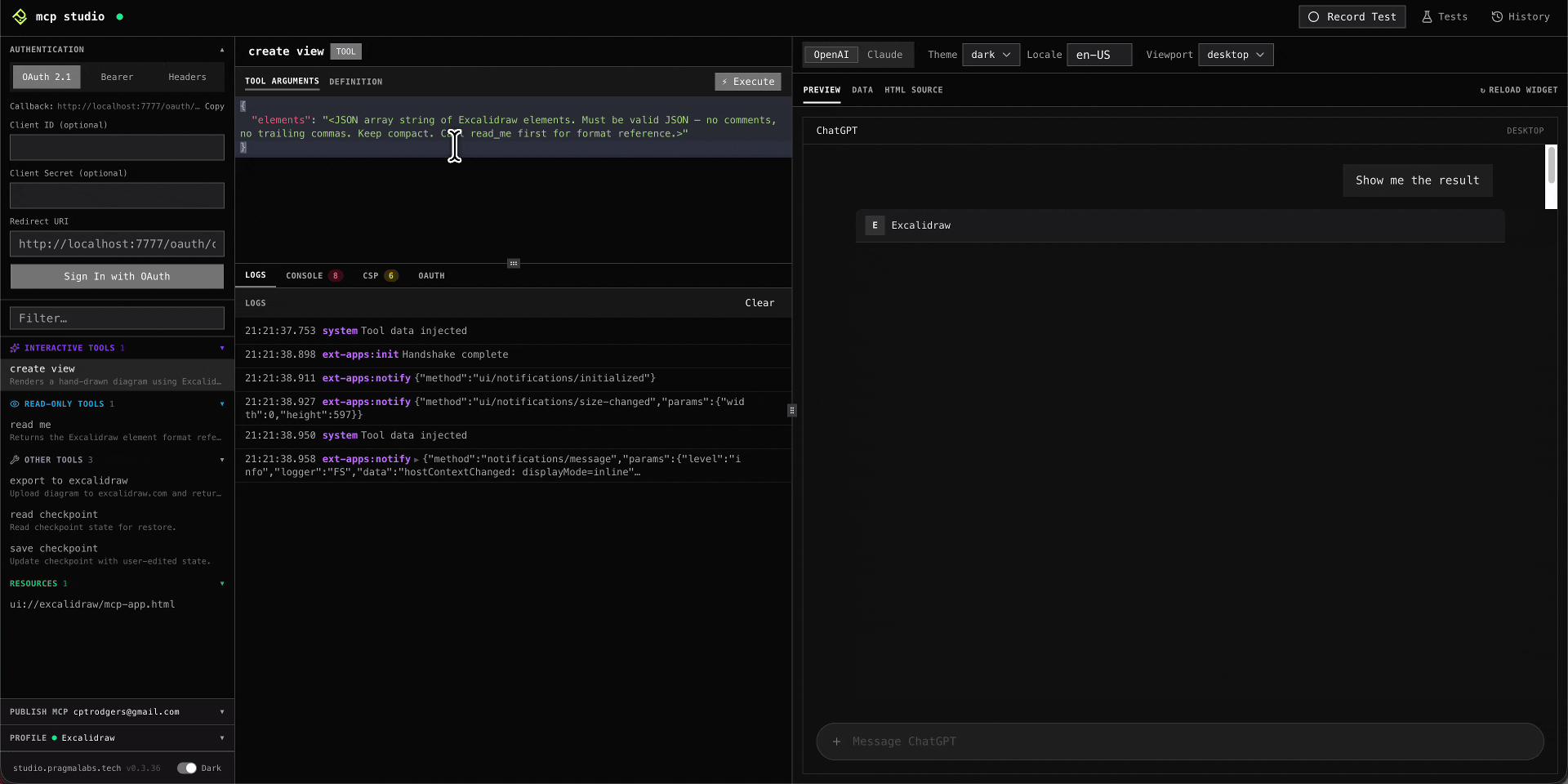

   Call a tool

   Pick a tool from the sidebar, fill in the arguments under the Tool Arguments tab, and click Execute. The response appears in the Logs panel below.

   In the example below we call create_view with:

   create_view

   {
     "elements": "[
       { "type": "rectangle", "id": "b1", "label": { "text": "Hello" }, ... },
       { "type": "arrow",     "id": "a1", ... },
       { "type": "rectangle", "id": "b2", "label": { "text": "MCP Studio" }, ... }
     ]"
   }

   mcp studio



4. 4

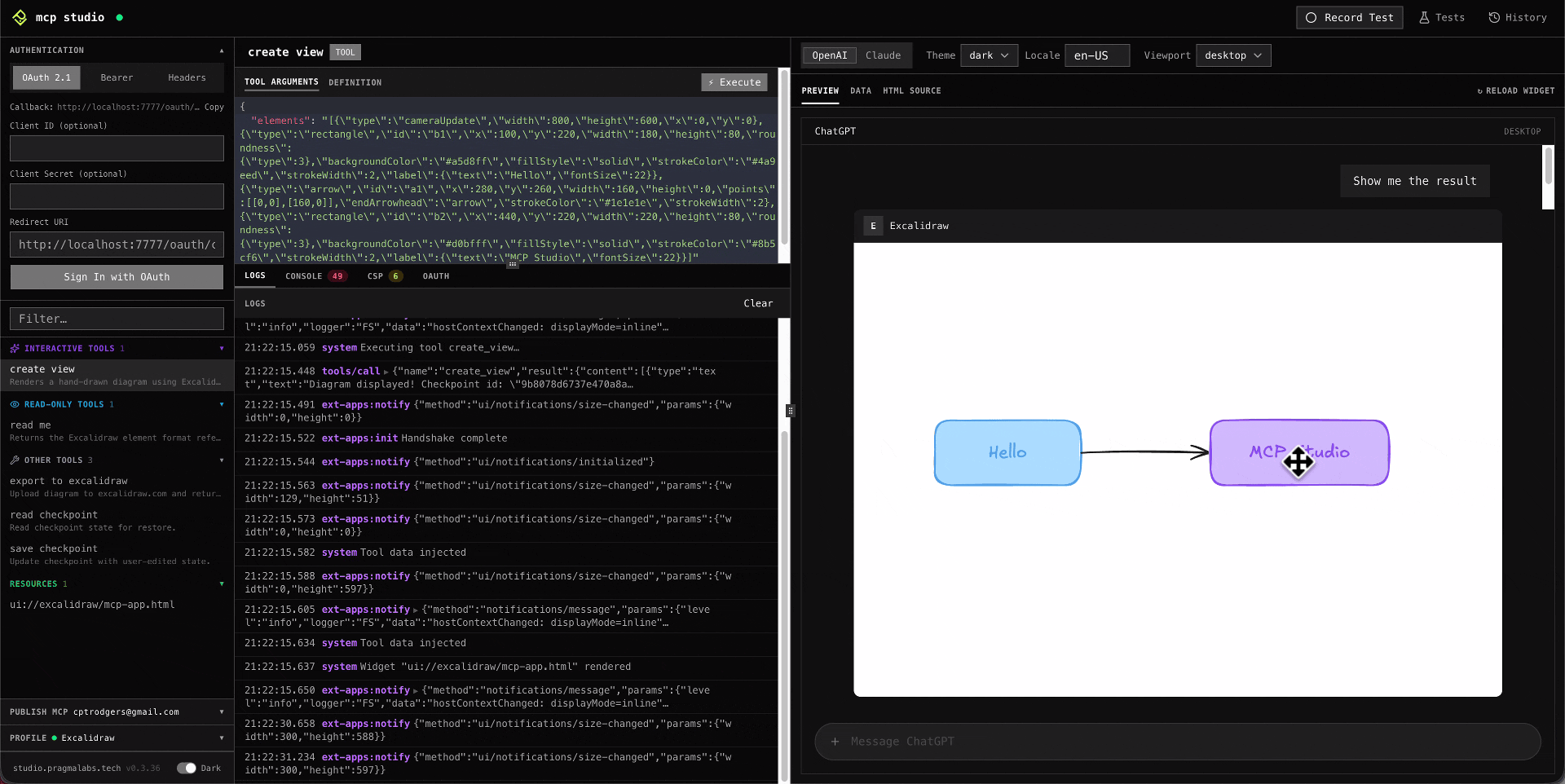

   Interact with widget UI

   If the tool returns a widget, it renders automatically in the Preview panel. Use the top bar to switch between ChatGPT, Claude, desktop, and mobile viewports and interact with it just as your users would.

   mcp studio



5. 5

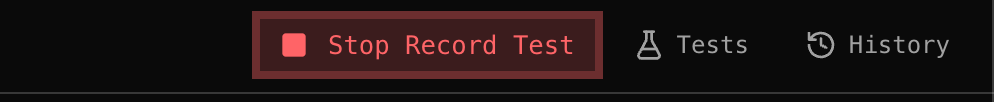

   Record the session

   Click Record Test in the toolbar, repeat the tool calls you want to capture, then click Stop Record Test. Give the test a name and save it — no code to write.

   mcp studio



   mcp studio



6. 6

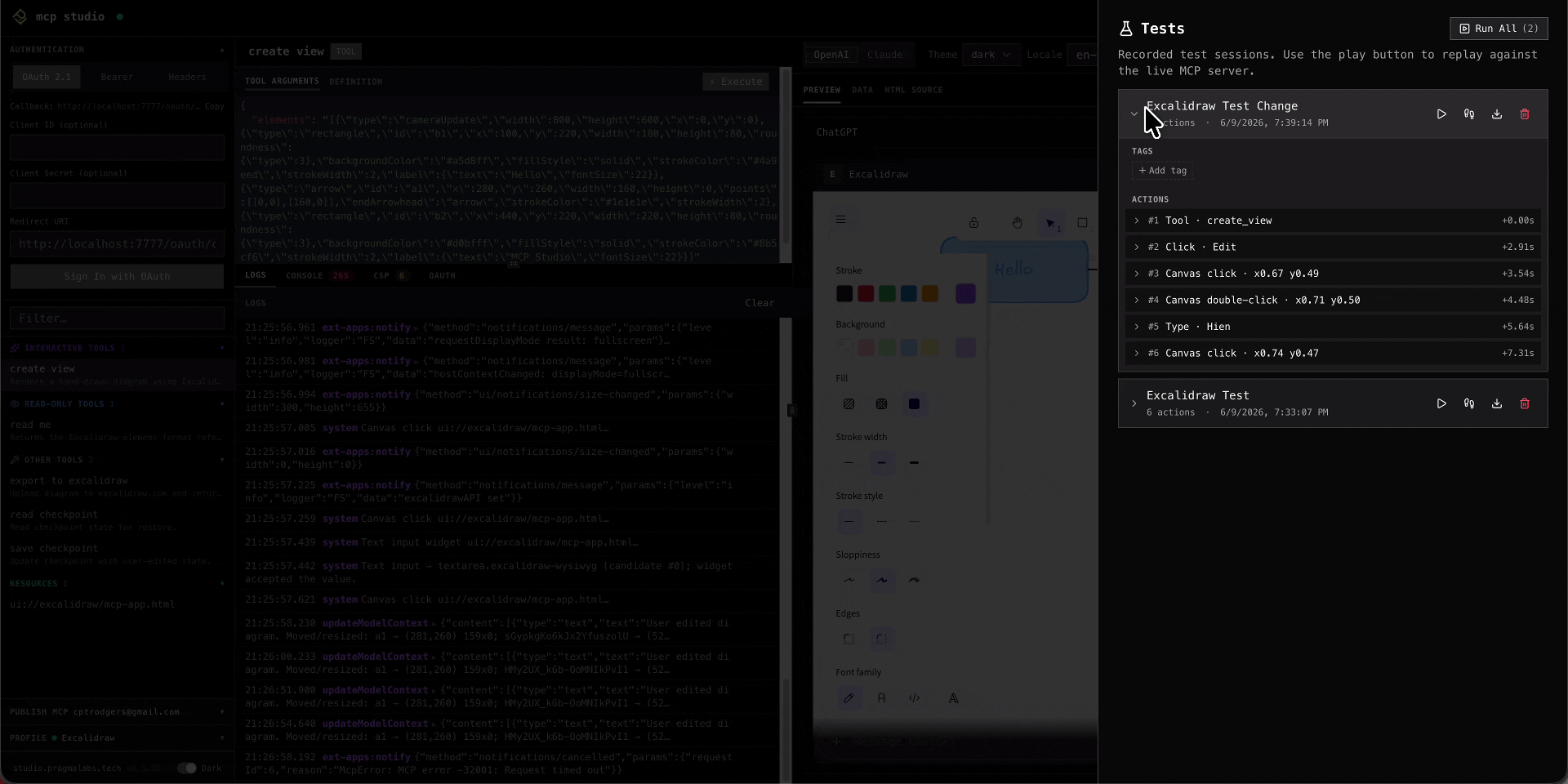

   Run step-by-step

   Open the Tests panel, find the test you just saved, and use the step-by-step controls to replay it one action at a time. Each step shows its result inline so you can pinpoint exactly where something differs.

   mcp studio



7. 7

   Replay E2E test

   Run the full test suite any time after a code change or new release. Every recorded step is replayed automatically and checked against the saved assertions — a pass/fail report is shown at the end.

   mcp studio
