MCP Resources

MCP resources can return any content — text, JSON, or data. But because MCP Studio is built for MCP applications with UI, it gives first-class support to UI resources: resources that return an HTML widget. These render live in the Widget Preview panel and let you inject tool input and output to test how the UI behaves — without running a full tool call.

Resource types

Data resource

Returns text, JSON, or markdown
Shown as read-only content in the preview panel
No injection or interaction

UI resource

Returns an HTML widget
Renders live and interactively in the preview panel
Supports toolInput / toolOutput injection to test UI with real data

Test your Widget UI before adding it to a tool

UI resources are ideal for building and validating widget layout in isolation. Iterate on the HTML, use Reload widget to instantly refresh the preview with the latest layout, and only wire the widget up to a tool once the UI looks right.

How to read a resource

1

Pick a resource

Click any resource URI in the left sidebar under the active profile. The execution panel loads the Resource Request tab.
2

Execute

Click Execute. MCP Studio fetches the resource and renders the returned HTML in the Widget Preview panel. Use Reload widget at any time to refresh the preview with the latest layout without re-fetching from the server.
3

Inject test data (optional, widget resources only)

If the resource returns a widget, open the Test Data tab and inject toolInput and toolOutput to simulate how the UI renders with real data. Click Inject to apply.

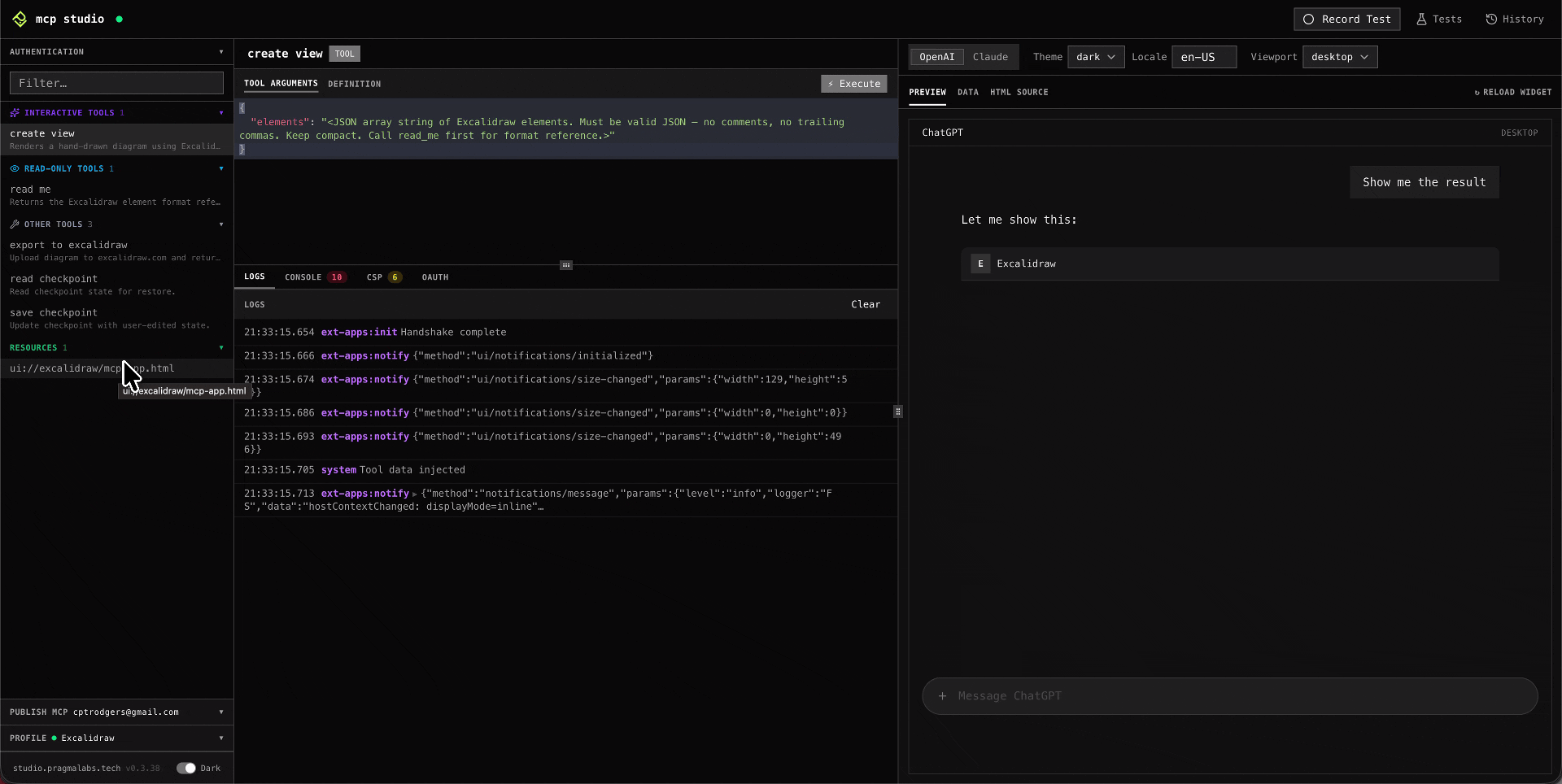

Reading a resource and interacting with the widget in MCP Studio — Reading a resource and interacting with the rendered widget UI.

Injecting test data

Widget resources are HTML templates — they expect tool input and output to be passed in so they can render meaningful content. The Test Data tab lets you supply that data without wiring up a full tool call first.

Test Data tab — inject shape

{
  "toolInput": {
    "elements": "[
      { \"type\": \"cameraUpdate\", \"width\": 800, \"height\": 600 },
      { \"type\": \"rectangle\", \"id\": \"b1\", \"label\": { \"text\": \"Hello\" }, ... },
      { \"type\": \"arrow\",     \"id\": \"a1\", ... },
      { \"type\": \"rectangle\", \"id\": \"b2\", \"label\": { \"text\": \"MCP Studio\" }, ... }
    ]"
  },
  "toolOutput": {}
}

toolInput mirrors the arguments you would pass to the corresponding tool. toolOutput holds any additional data the tool would have returned. Together they let the widget render as if a real tool call had just completed.

Resources vs Tools

MCP Tools

Execute server-side logic with arguments
Return data or a rendered widget
Recorded as test steps

MCP Resources

Fetch content from the server (data or UI widget)
UI resources render live and support toolInput / toolOutput injection
Ideal for developing and validating widget layout before adding a tool
